AmeriGlide Nano Vertical Platform Lift - Quick Ship
Need Assistance? Call 1 (877) 852-3217.

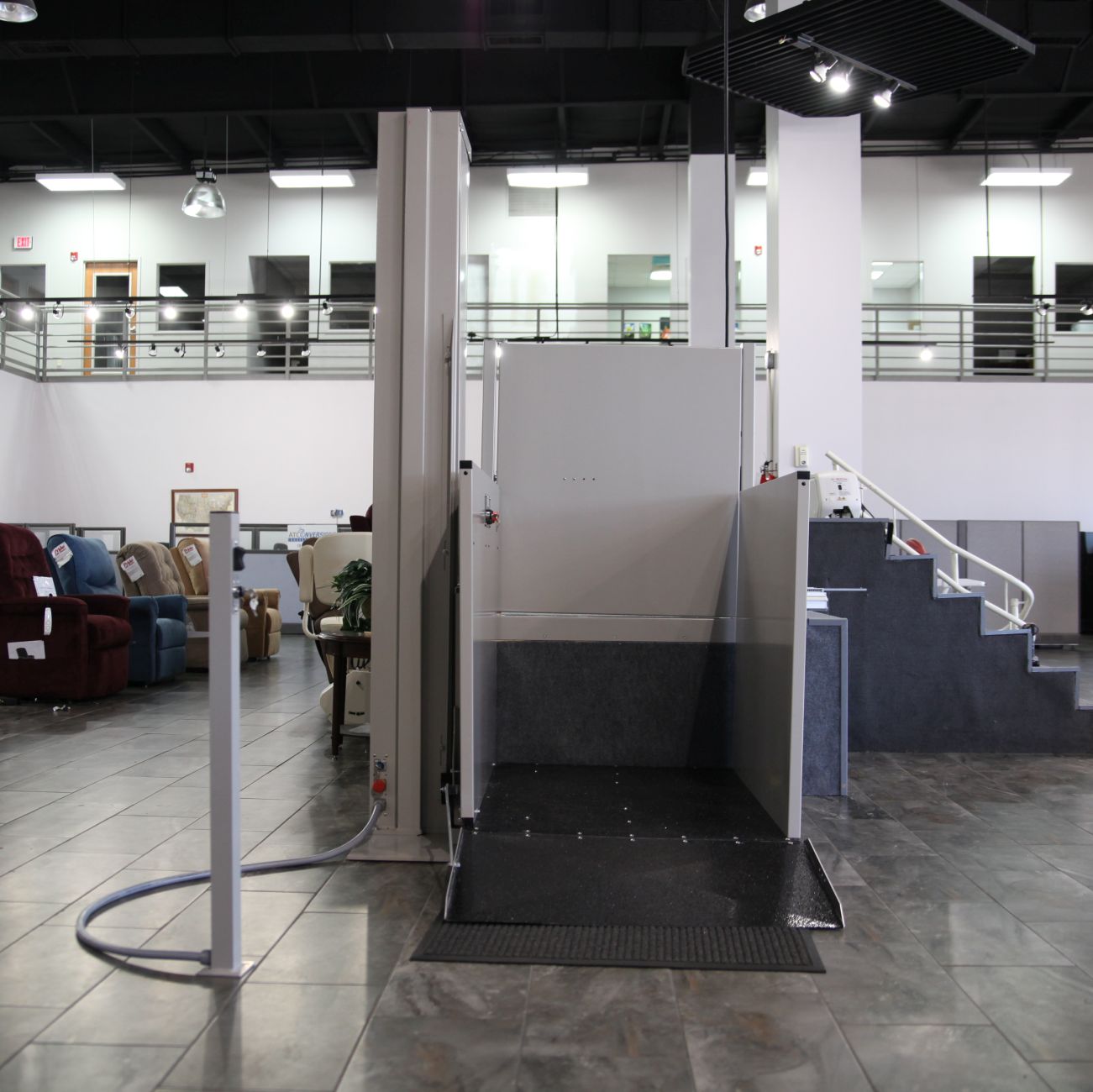

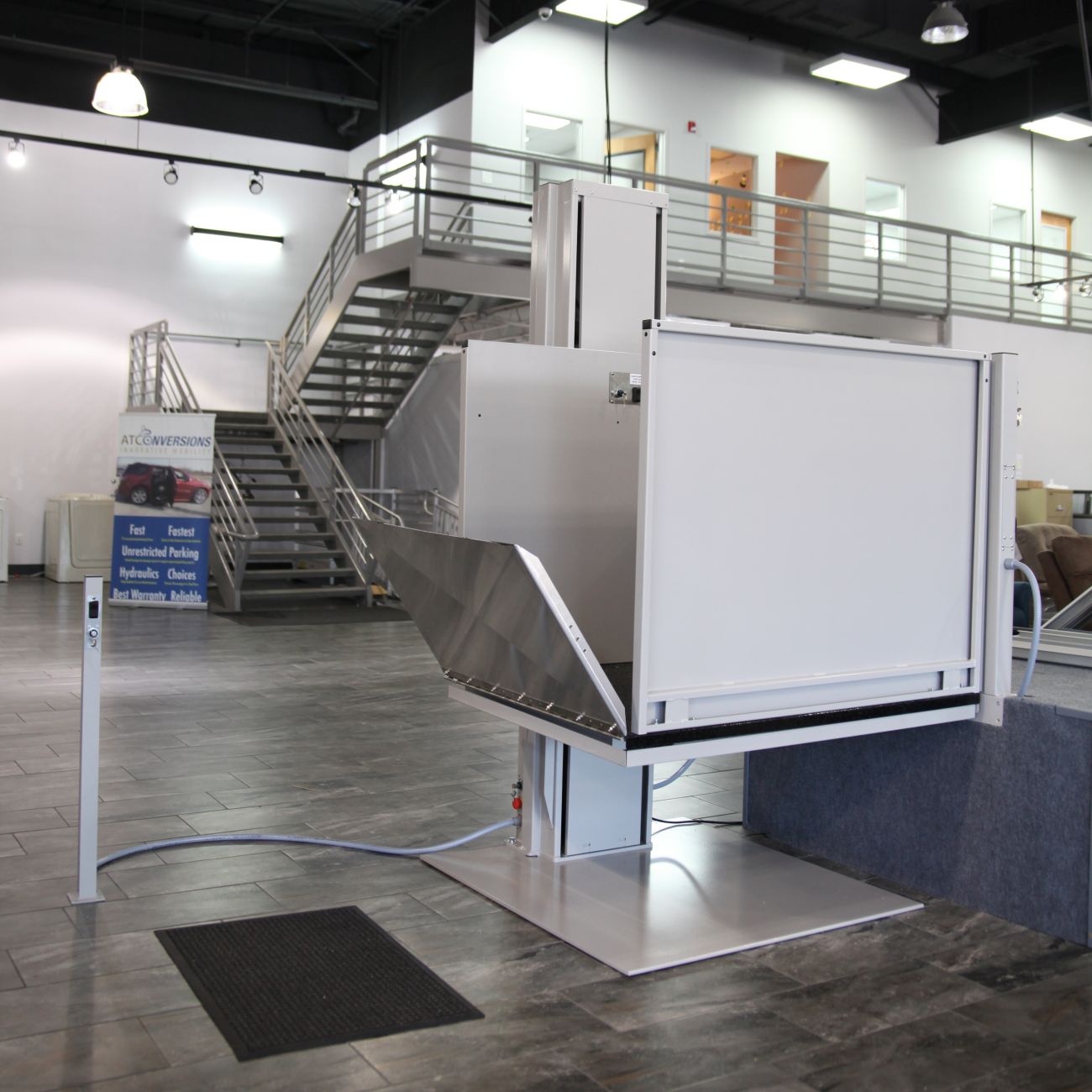

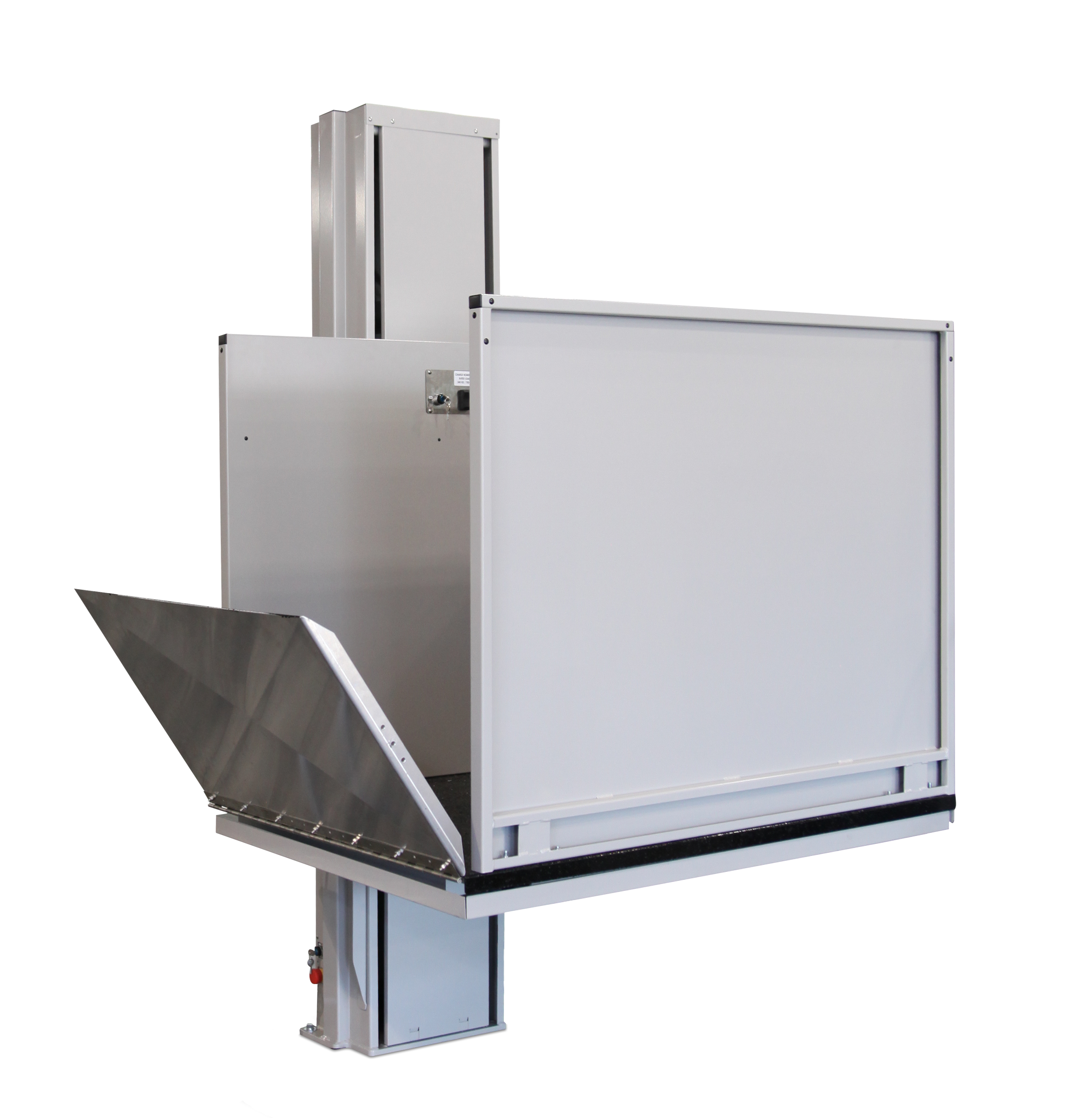

The AmeriGlide Nano Vertical Platform Lift is the market's
slimmest and most elegant tower design, which
means a more attractive look, low shipping costs
and easier installation.
The attractive Nano Vertical Platform Lift has been designed, developed and manufactured to meet the highest safety and security standards in the industry with an innovated design that features:
The attractive Nano Vertical Platform Lift has been designed, developed and manufactured to meet the highest safety and security standards in the industry with an innovated design that features:
- Much Smaller Footprint
- Automotive-Grade Steel
- More Attractive Look
- Plug-N-Play
- Reversible (left or right tower)
Additional Images
Click on an image to enlarge.
- Lifting Capacity: 800 lb
- Standard Lift Height: 64"
- Maximum Lift Height Upgrade: 64"
- Lift Speed (FPM): 12
- Maximum Stops: 2
- Arrives Assembled: Yes
- Drive System: Acme Screw
- Battery Powered Option: Yes
- Constant Pressure Platform Control: Yes
- Emergency Stop Platform Control: Included
- Alarm Button: Included
- Keyed Platform Control: Included
- Platform Type: Non-skid (Epoxy crushed and recycled tires)
- Platform Size: 36" x 54"
- Platform Configuration: Straight-Thru Access
- Portable: No
- Nano Includes
- Power Source
- Number of Stops
- Lifting Height
- Platform / Tower Configuration
- Platform Dimensions (Dimensions are All Clear)
- Entrance Gate Options (Interlock Included with Gate)
- Call/Send Options
- Interlocks (For Gates/Doors Provided by Others)
- State Required Inspections / Permits / Evaluations
- Installation (Within 100 miles of Raleigh)
- Delivery Options
- Delivery Zones (adds to flat shipping charge)
- 455 Keys
$0.00
- Rocker Switch
$0.00
- Audible Emergency Alarm
$0.00
- Pit Switch
$0.00
- AC Power Cord (120VAC/20A) and Interlock Wiring Kit (Interlocks Not Included)
$0.00
- Emergency Lowering
$0.00
- DC Battery Powered (2 x U1 Batteries Included)
$0.00
- Two Stop
$0.00
- 64" Maximum Lift Height (tower 92")
$0.00
- Straight Thru Left Hand
$0.00
- Straight Thru Right Hand
$0.00
- 36" x 54"
$0.00
- A Call/Send Control must be ordered for every Gate Ordered
$0.00

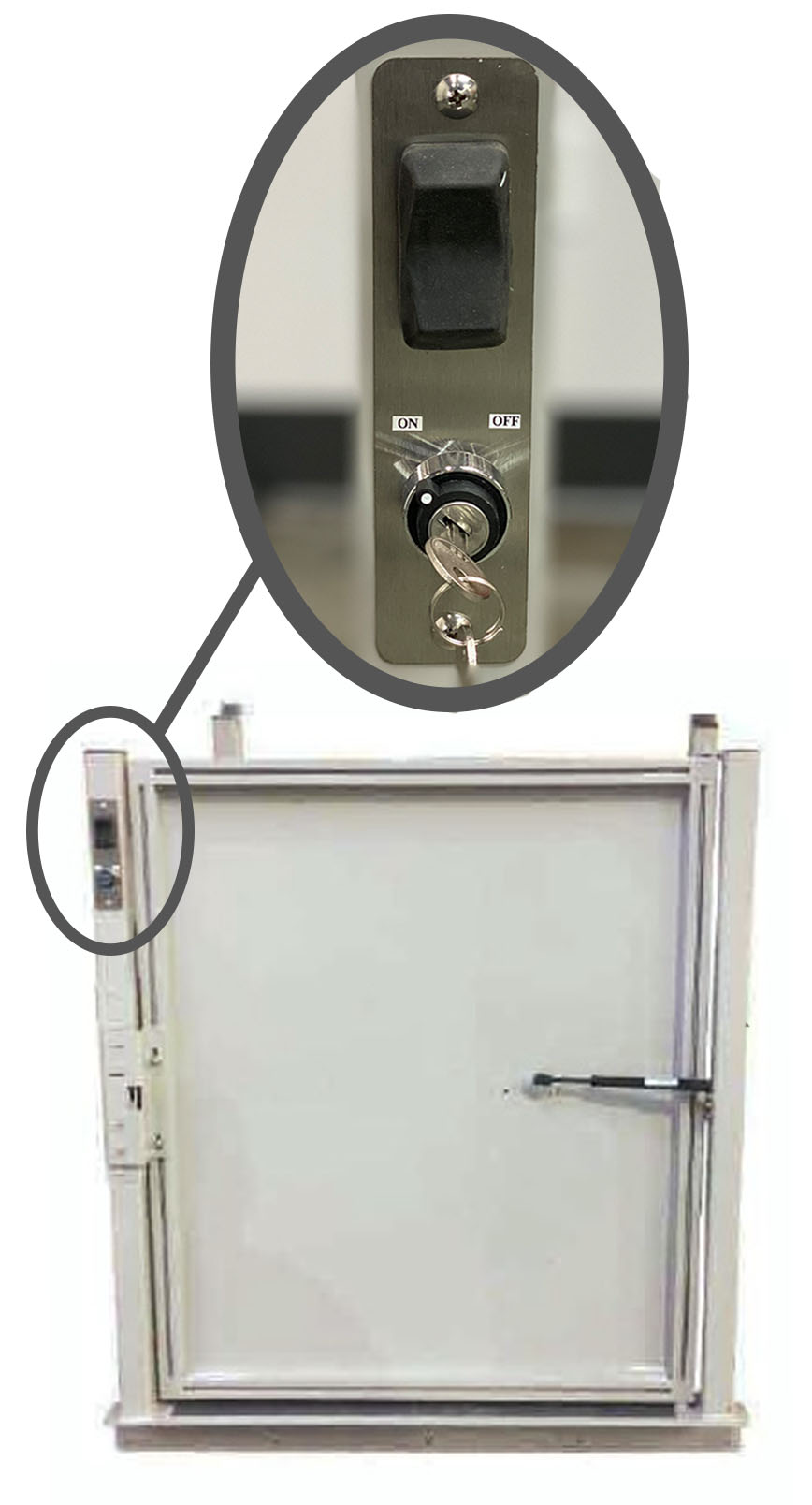

- 36" W x 42" H Upper Landing Gate
$1,199.00

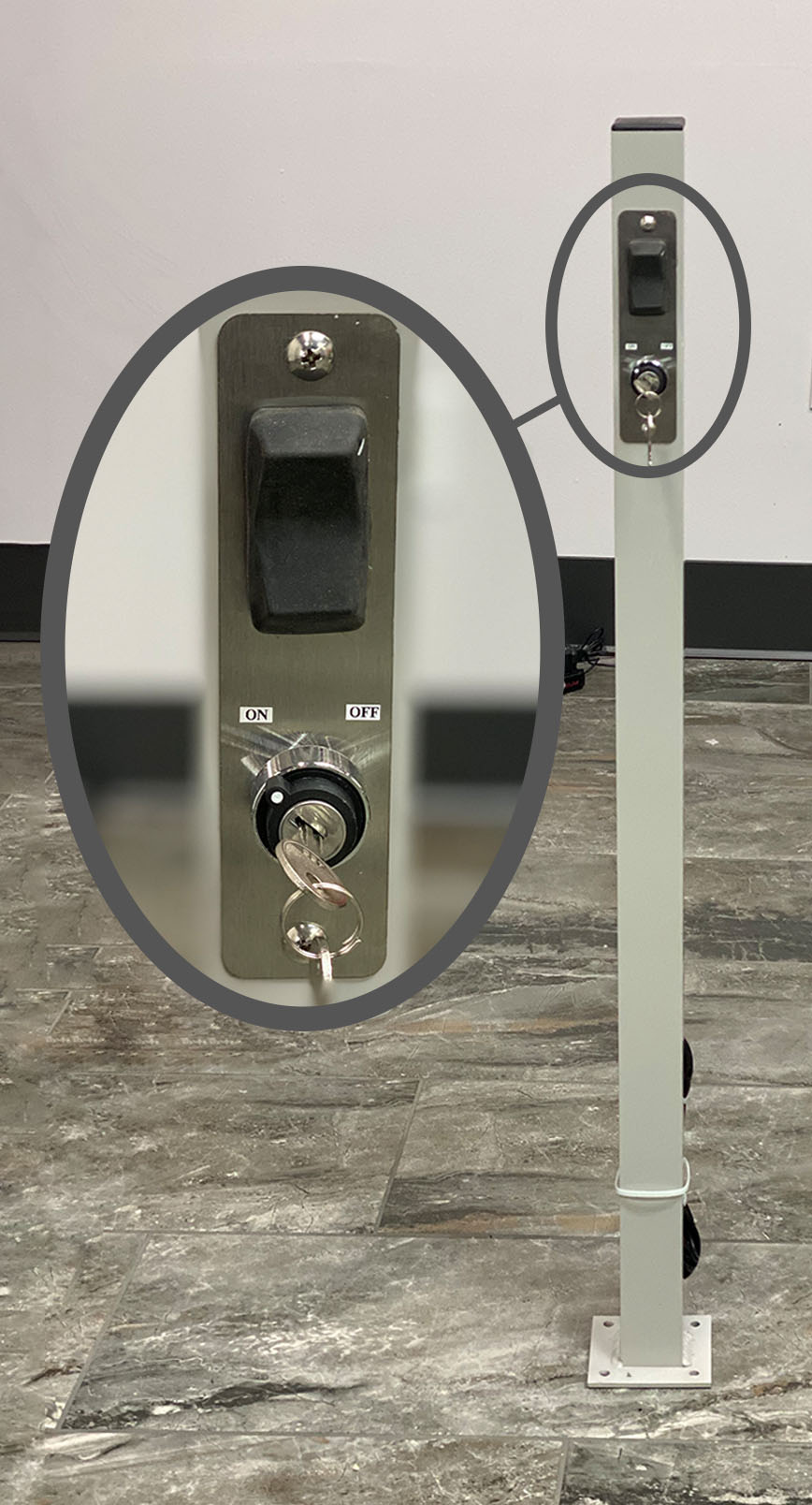

- Keyed Call/Send Post - Lower Landing
$250.00
- Keyed Call/Send Post - Upper Landing
$250.00

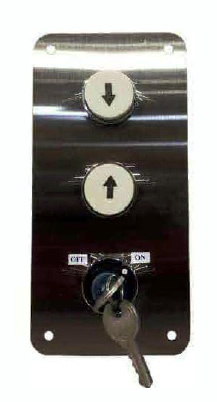

- Keyed Call/Send Flush Mount - Lower Landing
$250.00
- Keyed Call/Send Flush Mount - Upper Landing
$250.00

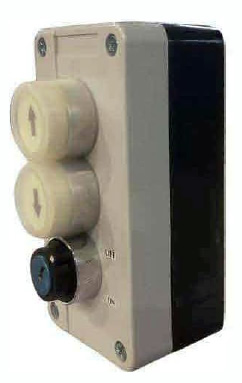

- Keyed Call/Send Surface Mount - Lower Landing
$250.00
- Keyed Call/Send Surface Mount - Upper Landing
$250.00
- Gate Mounted for Upper Landing Gate
$250.00

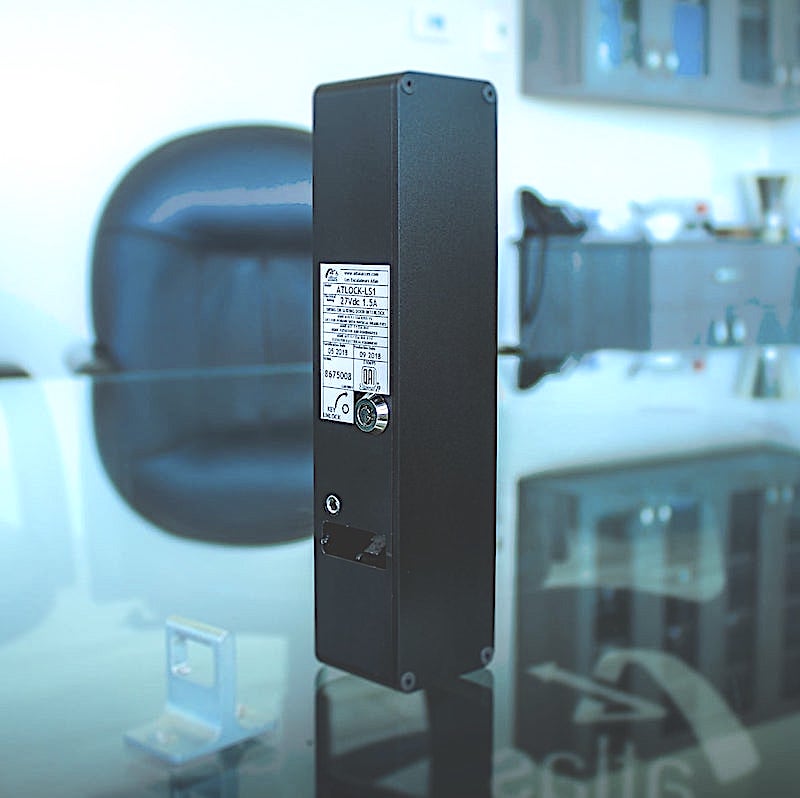

- Interlock Only (For Gates/Doors Provided by Others)
$399.00
- Permit (Required in Kentucky)
$87.50
- Georgia Permit & Inspection Fees
$250.00
- Site Evaluation (Required for sites outside a 50 mile radius of Raleigh when Install Purchased)
$150.00
- Alabama residents, please call 1 (205) 202-0158 for installation and permit pricing.
$0.00
- Self-Install
$0.00
- Up to 64" Lift Height Installation
$1,295.00
- Pick up at Local Freight Terminal
$0.00
- Raleigh NC Warehouse Pickup
$675.00
- Site Shipping - Customer Provided Fork Lift OR Loading Dock on Site
$0.00
- Site Shipping - Liftgate Delivery
$199.00
- Site Shipping - Flatbed & Forklift Delivery (Available in Most Areas)
$1,495.00
- Factory Pickup
$0.00
- Deliver to: Eastern and East-Central States
$0.00
- Deliver to New York City 5 Boroughs
$299.00
- Deliver to: MN, WI, NE, IA, IL, KS, MO, AR, OK, LA, TX
$194.00
- Deliver to: ND, SD, WY, CO, NM
$475.00
- Deliver to: MT, ID, UT, AZ, NV, CA, WA, OR
$913.00
- Deliver to: AK, HI, PR (call for price)
$0.00
