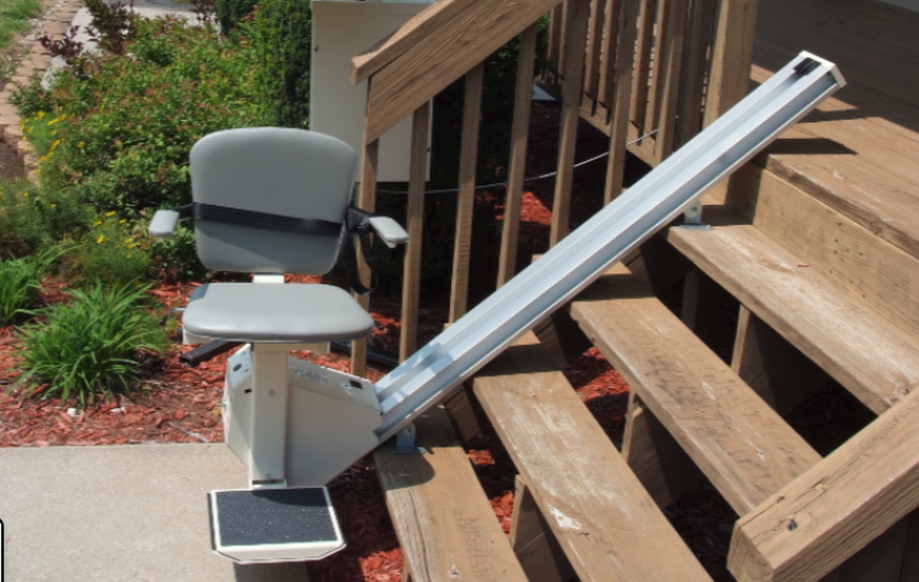

Crest HD Stair Lift Outdoor
Need Assistance? Call 1 (877) 852-3215.
- 1 year on batteries
2 years on parts
5 years on drive train, motor and circuit board
The Crest HD Stair Lift Outdoor comes to you at a low price but feature rich.
- ETL listed A17.5 / B44 - A18.1

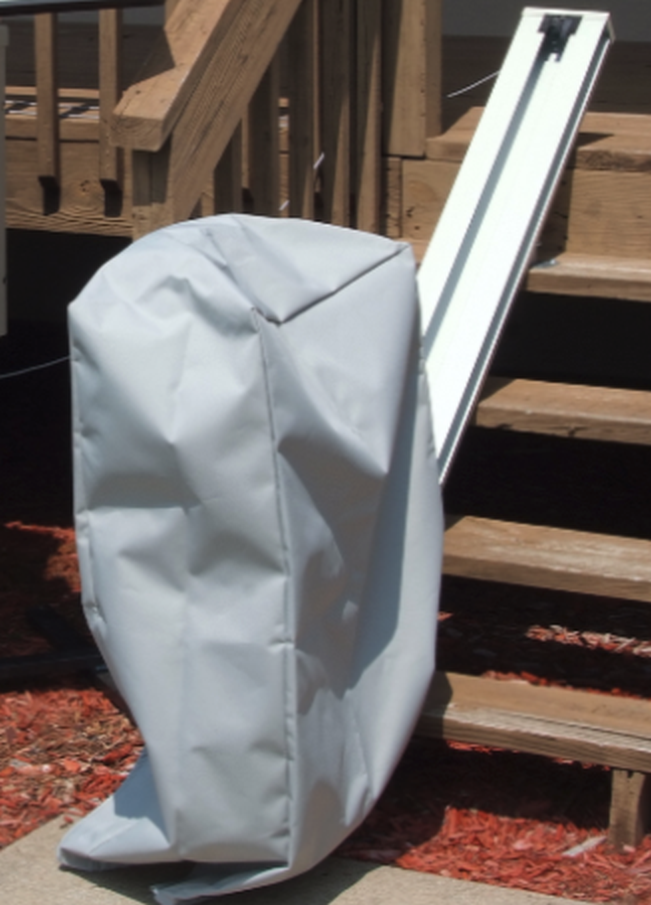

- Heavy duty canvas cover
- Outdoor powder coating
- Sealed switches and waterproof connections
- Rack and pinion drive
- Interior gear rack
- 25 to 45 degree angle applications
- Quick adjustment limit cams
- Folds to 12.5" from the wall
- Chassis weight 40 lbs.
- Track weight for 8' section 36 lbs.
- Wireless seat control
- Wireless remote controls for upper and lower landings
- 15' track standard, additional sections available
- Chassis mounted auxiliary control switch
- Obstruction audio beep notification
- Battery operated system
- Low profile stair-hugger track and bracket design – 2-1/2" track rest on stairs
- Constant pressure controls
- 3" to 6" horizontal extension at top landing (depending on angle)
- 90 degree swivel seat assembly at top landing
- ANODIZED aluminum rail

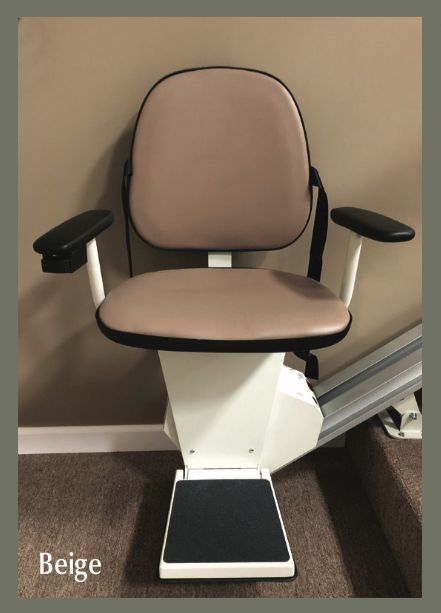

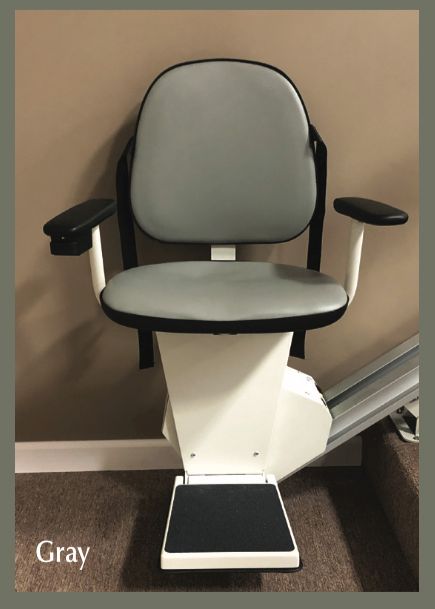

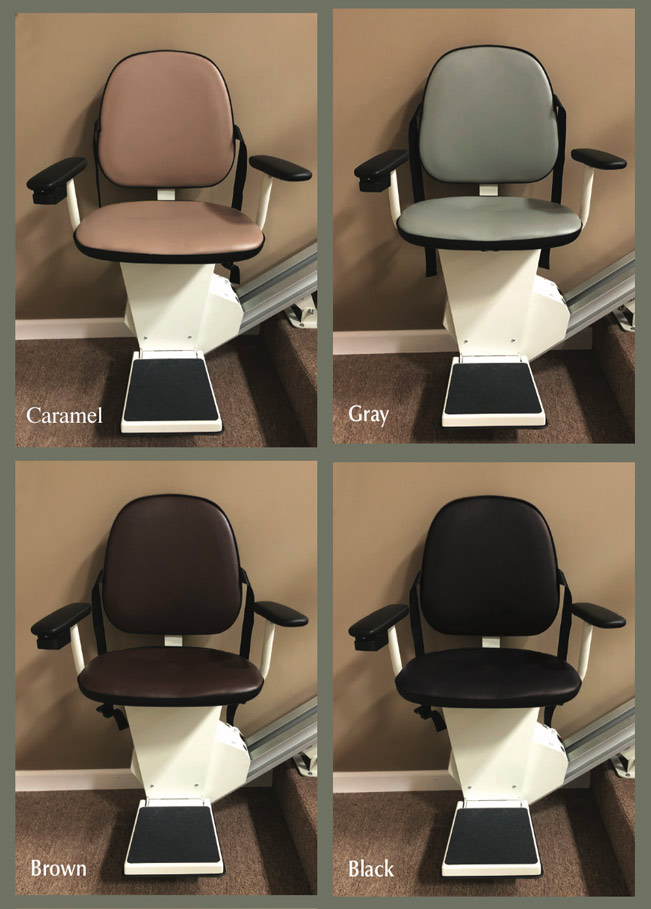

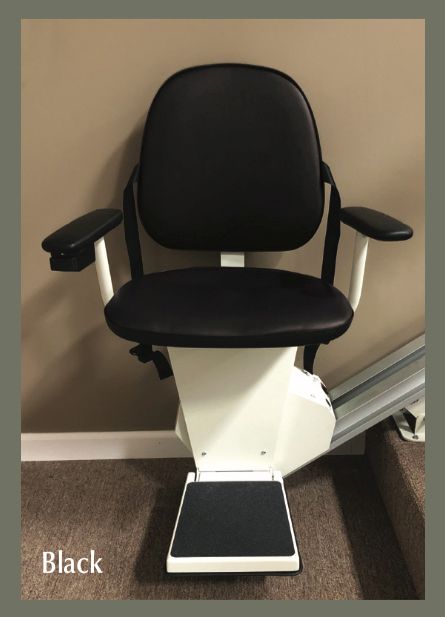

- Black, Gray, Beige or Brown upholstery
- Seat belt
- Folding arm rest
- Proudly made in the USA!
Additional Images
Click on an image to enlarge.
- Drive Type: Rack and Pinion
- Uses Batteries: Yes
- Standard Capacity: 350 lb
- Standard Track Length (up to): 15'
- Swivel Seat: Yes
- Swivel Seat Rotation: 90 Degrees at top landing
- Seat Folds Up: Yes
- Arms Fold Up: Yes
- Constant Pressure Controls: Yes
- Footrest Safety Sensor: No
- Warranty: 1 year on batteries, 2 years on parts, 5 years on drive train, motor and circuit board
- Track Width: 6.5"
- Call Stations Included: 2
- Rail Angle, Min: 25°
- Rail Angle, Max: 45°
- Digital Diagnostics Display: No
- Key Lock: No
Stair Lift Overview
- Stair Lift Orientation
- Upholstery Color
- Seat Width
- Chassis / Track Custom Color
- Track Length
- Stair Lift Measurements According to Measurement Guide
- Options
- Installation
- Installation Special Cases
- Shipping
- Right
$0.00
- Left
$0.00
- Black
$0.00
- Walnut
$0.00
- Caramel
$0.00
- Gray
$0.00
- Standard
$0.00
- Arms Extended 2" on Either Side
$230.00
- Chassis Custom Color
$310.00
- RAL Color for Chassis Powder Coat
$0.00
- Track Custom Color
$462.00
- RAL Color for Track Powder Coat
$0.00
- Standard 15' Of Track
$0.00
- Additional Track (Per Foot) (More Than 1' of Additional Track Incurs Additional Shipping Cost)
$55.00
- Step 1 - Total Staircase Length
$0.00
- Step 2 - Top Landing to Bottom Step
$0.00
- Step 3 - Stair Width
$0.00
- Step 4 - Available Space at Bottom
$0.00
- Step 5 - Height of One Step
$0.00
- Step 6 - Length of One Tread
$0.00
- Step 7 - One Step Front Edge to Front Edge
$0.00
- Step 8 - Available Space at Top
$0.00

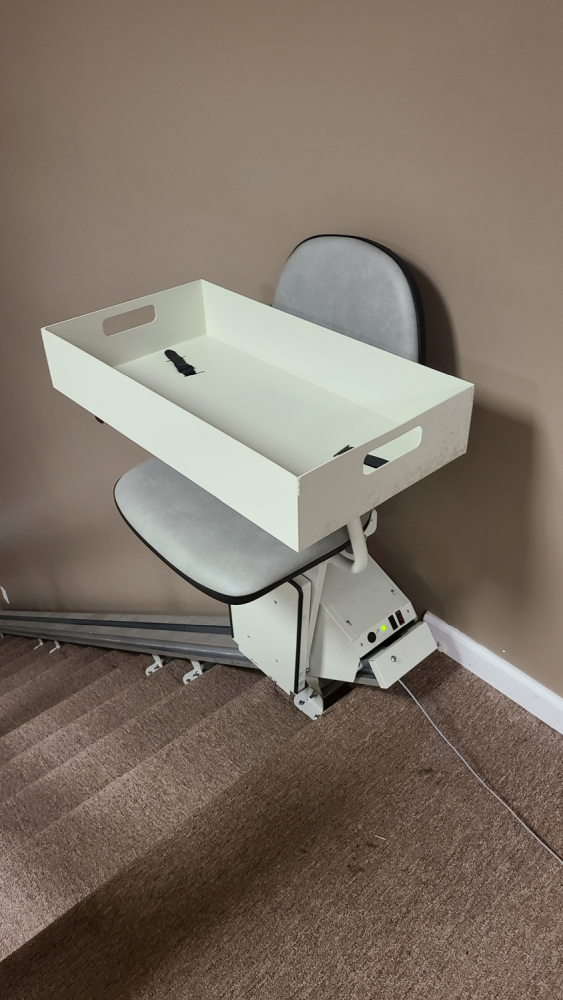

- Cargo Tray Add-On
$230.00
- Wall Mounted Call/Send Controls (set)
$154.00
- Additional Key Fob Remote
$77.00
- Additional Standard Brackets
$38.00
- Tall Brackets
$39.00
- Extra Splice Bar
$23.00
- Key Switch
$77.00
- Lockable Battery Disconnect
$77.00
- Bluetooth Controller
$124.00
- Solar Power Unit
$1,495.00
- Self-Install
$0.00
- Nationwide Installation Service
$599.00
- Double Stair Lift Installation Service - Per Stair Lift
$437.50
- Nationwide Measurement and Installation
$749.00
- Stair Lift Removal and Disposal
$499.00
- Installation In Remote or Limited Access Location
$345.00
- Installation On Concrete, Steel, or Tile Stairs
$300.00
- Additional Shipping Charge for Unit with More Than 16' of Track
$154.00
- Shipping to Alaska or Hawaii (Call for Price)
$0.00
